Price by Payment Method

Card Payments Best Deal

PKR 46,450

Bank transfer Best Deal

PKR 45,550

Cash on delivery Best Deal

PKR 46,550

Audio Player & USB DAC
Supports up to 32-Bit / 384 kHz
Native DXD and DSD Playback
Plays PCM, WAV, FLAC, AAC, MP3, & More
3.97″ 800 x 480 IPS Display

Main Unit
Name / Model No.	X5 3rd gen（FX5321）	Operating System	Deeply customized Android 5.1.1
CPU Model	RK3188	No. of cores	4
CPU operating frequency	1.4GHz	DAC	AK4490
Keyboard	Virtual QWERTY keyboard	Input method	Touchscreen
Special features	Dual Android / Pure Music operating modes, symmetrical remappable keys, USB DAC, docking connector, etc.	User Interface	Android 5.1.1 / FiiO Music
Chips used	SoC: RK3188， DAC: AK4490x2, LPF: OPA1642x2, OP: Customized OPA426x2
Connectivity
WIFI	2.4GHz IEEE802.11 b/g/n standards supported	Bluetooth	Bluetooth V4.0，aptX supported
USB	Micro USB2.0
Display screen
Display size	3.97 inches	Number of colours	16.7 million colors
Display type	IPS TFT	Viewable angle	178°
Resolution	480×800	Pixel density	233 ppi
Touchscreen	Yes
Storage
RAM	1GB	Total ROM	32GB
Storage expansion type	Micro SD	ROM available to user	About 26G
Maximum storage expansion	512GB (256GB x 2)
Buttons and ports
Buttons	Side buttons + side volume wheel+ touchscreen	Custom key mapping	N/A
Headphone out	3.5mm standard headphone output jack	Balanced output	Supported (2.5mm balanced headphone jack)
Line out	Standard 3.5mm port (shared LO/Coaxial out)	USB connection	Micro USB2.0 (charging / data transfer / docking function / USB DAC)
Digital Coaxial out	Standard 3.5mm port(shared LO/Coaxial out)
General
Color	Titanium/Black/Red	Dimensions	114.2 mm× 66.2 mm× 14.8 mm
Weight	186g	Volume control	120 steps +/- button control (via analog-domain controller
Recommended headphone impedance	16~150 Ω	Equalizer	10-band EQ (±6dB), 9 presets+custom preset, ViPER Effect
Bass boost	N/A	Treble boost	N/A
Balance control	10 dB	Gain control	Low/High
USB DAC	Up to 192kHz/24bit supported
Power specifications
USB power adapter	DC 12/1.5A, 9V/2A, 5V/2A recommended	Battery	Internal 3400 mAh High-voltage quick charging Li-polymer battery
Charging indication	via LCD display and pulse LED	Charging time	＜2 h (DC 12V/1.5A) ＜3 h (DC 5V/2A)
Battery indication	Yes (accurate battery % readings)
Battery Life & Test Conditions
3.5mm headphone output：>10 h
Volume	46	Gain	High
Load	M3 open earbuds (27 Ω)	Screen	OFF
Test File	MP3 44.1kHz/16bit	EQ	OFF
2.5mm TRRS balanced headphone output：≥8 h
Volume	48	Gain	High
Load	32Ω	Screen	OFF
Test File	MP3 44.1kHz/16bit	EQ	OFF
Battery life test file download link	click here to download
Others
Firmware Upgrade	supported both via zip file and OTA	Font size	Changeable
Third-party apps support	No limit (recommended to install the apps listed on FiiO Market)
Line output specifications
THD+N	＜0.0009% (1 kHz/10kΩ)	SNR	≥120 dB (A-weighted)
Frequency response	5 Hz~55 kHz（-3dB）	Dynamic range	>117 dB
Channel separation	＞98 dB (1 kHz)	Line level	＞1.8Vrms
Headphone out specifications (3.5mm headphone out jack)
Output power 1	≥480 mW（16Ω / THD+N＜1%)	Output impedance	＜1Ω (32Ω loaded)
Output power 2	≥250 mW（32Ω /THD+N＜1%)	Channel separation	＞73 dB (1 kHz)
Output power 3	≥28 mW（300Ω / THD+N＜1%)	THD+N	＜0.003% (1 kHz)
Frequency response	5 Hz~55 kHz（-3dB）	Peak output voltage	＞8 Vp-p
SNR	≥115 dB (A-weighted)	Max. output current	250mA (For reference)
Balanced headphone out specifications (2.5mm TRRS headphone out jack)
Output power 1	≥400 mW（16Ω / THD+N＜1%)	Output impedance	＜3Ω (32Ω loaded)
Output power 2	≥240 mW（32Ω /THD+N＜1%)	Channel separation	≥98 dB (1 kHz)
Output power 3	≥26 mW（300Ω / THD+N＜1%)	THD+N	＜0.003% (1 kHz)
Frequency response	5 Hz~55kHz（-3dB）	Peak output voltage	＞7.5 Vp-p
SNR	≥111 dB (A-weighted)	Max. output current	＞250 mA (For reference)
File format support
Lossless:	DSD：DSD64/128（”.iso”, “.dsf”, “.dff”） DXD：352.8K APE FAST/High/Normal：384kHz/24bit（MAX） APE Extra High：192kHz/24bit（MAX） APE Insane：48kHz/24bit（MAX） Apple Lossless：384kHz/24bit（MAX） AIFF：384kHz/24bit（MAX） FLAC：384kHz/24bit（MAX） WAV：384kHz/32bit（MAX） WMA LOSSLESS：96kHz/24bit（MAX）
Lossy compression:	MP3, AAC, WMA, OGG…

Weight

0.45359237 kg

Brand

FiiO

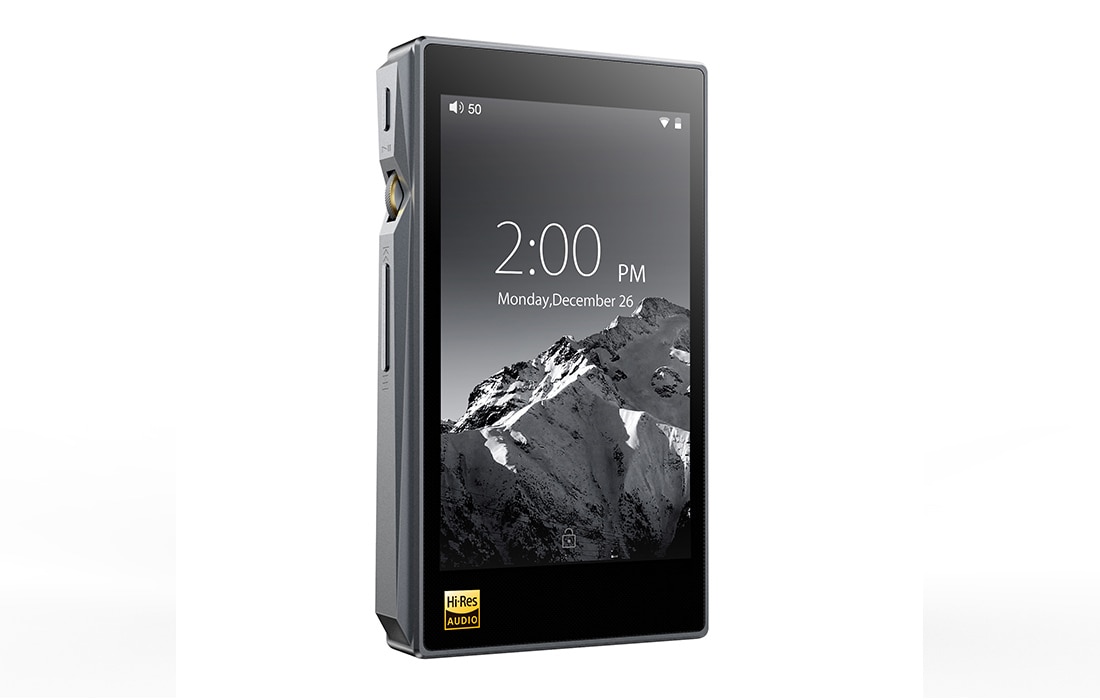

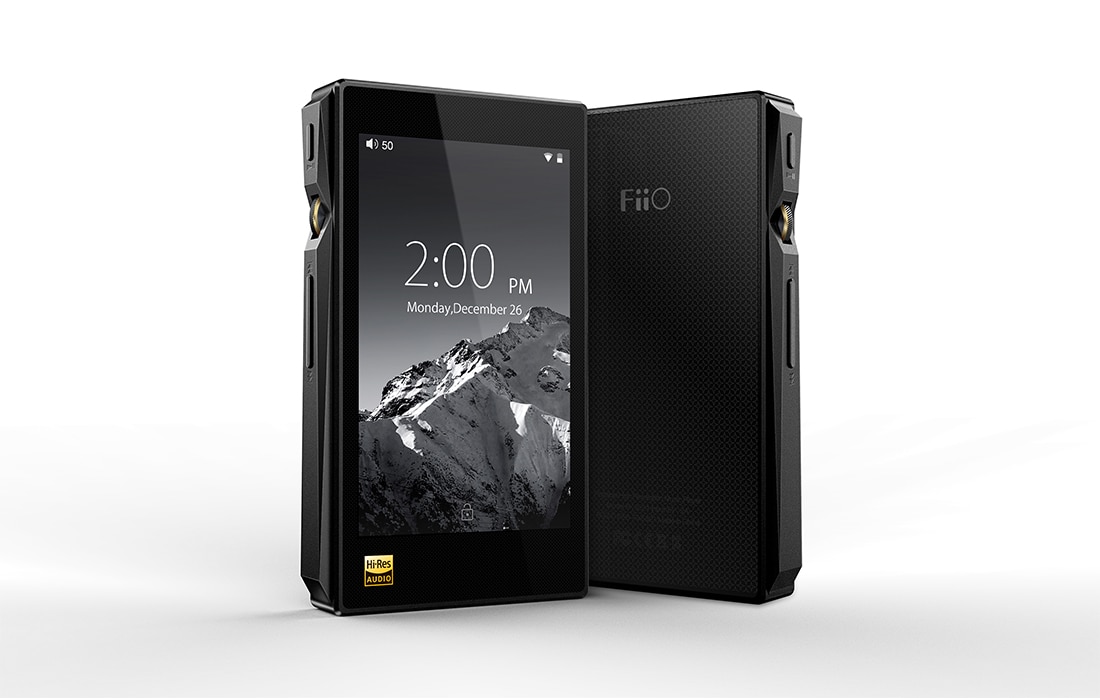

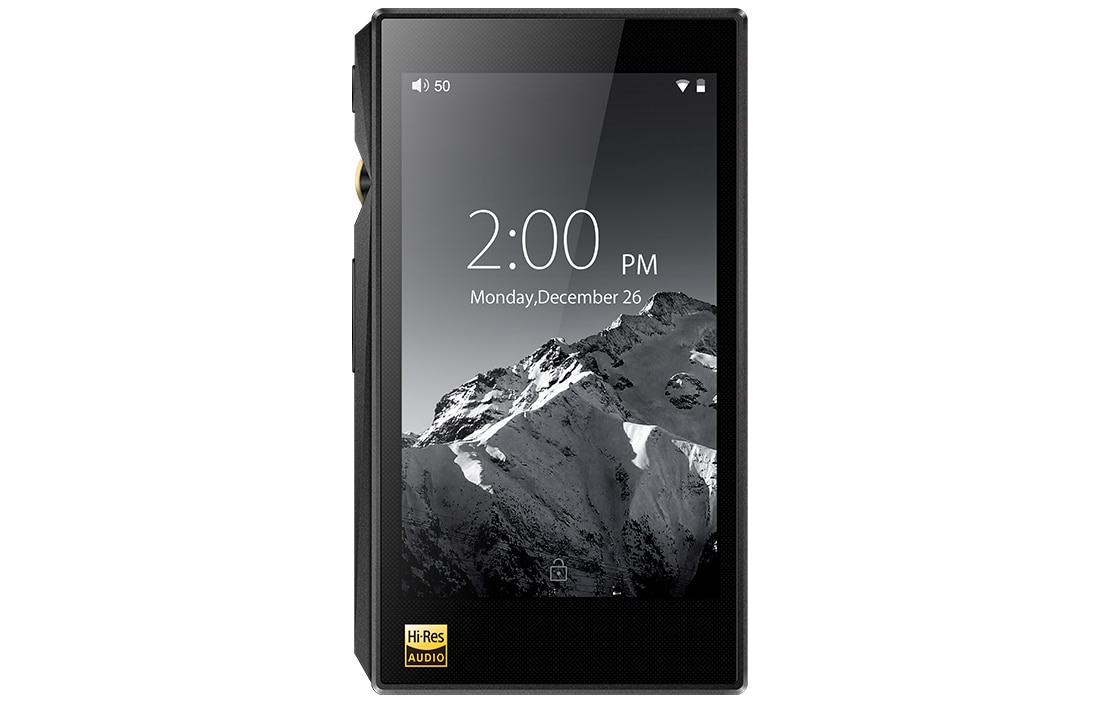

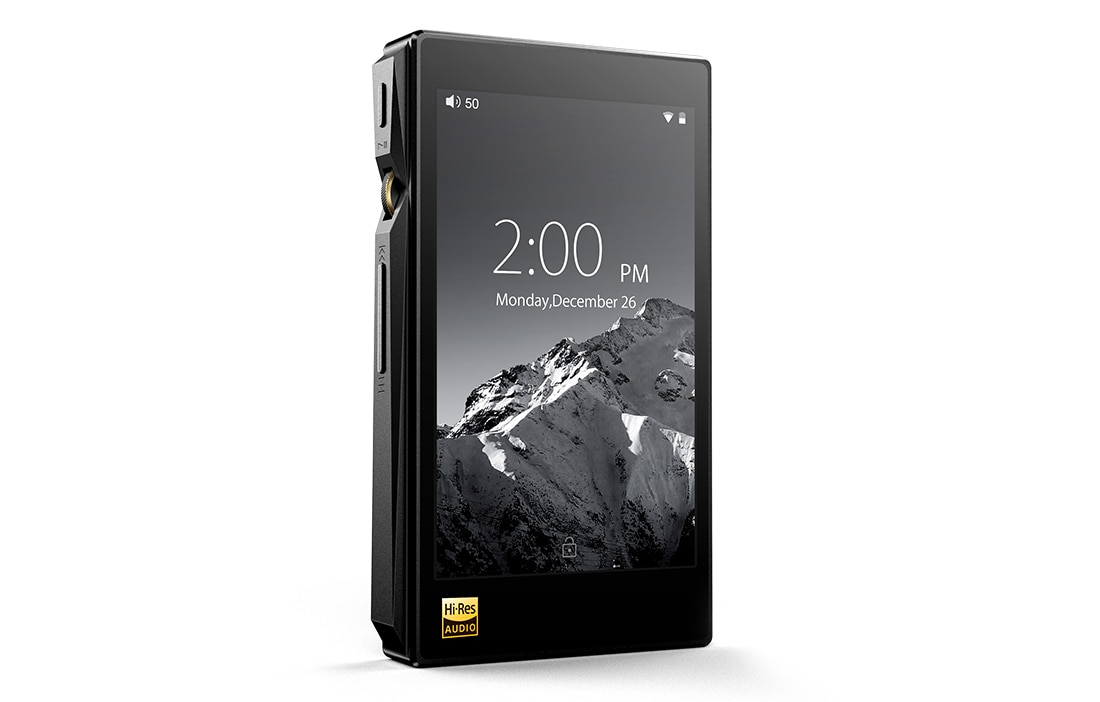

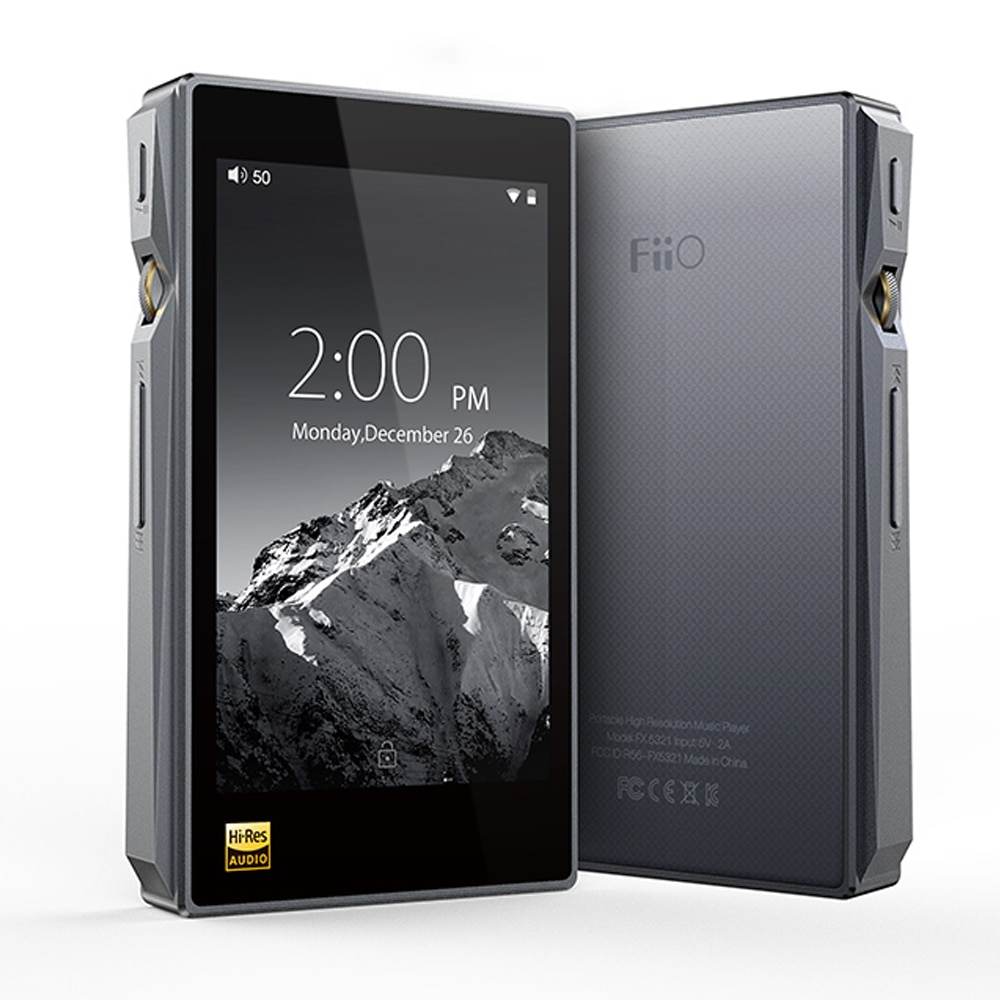

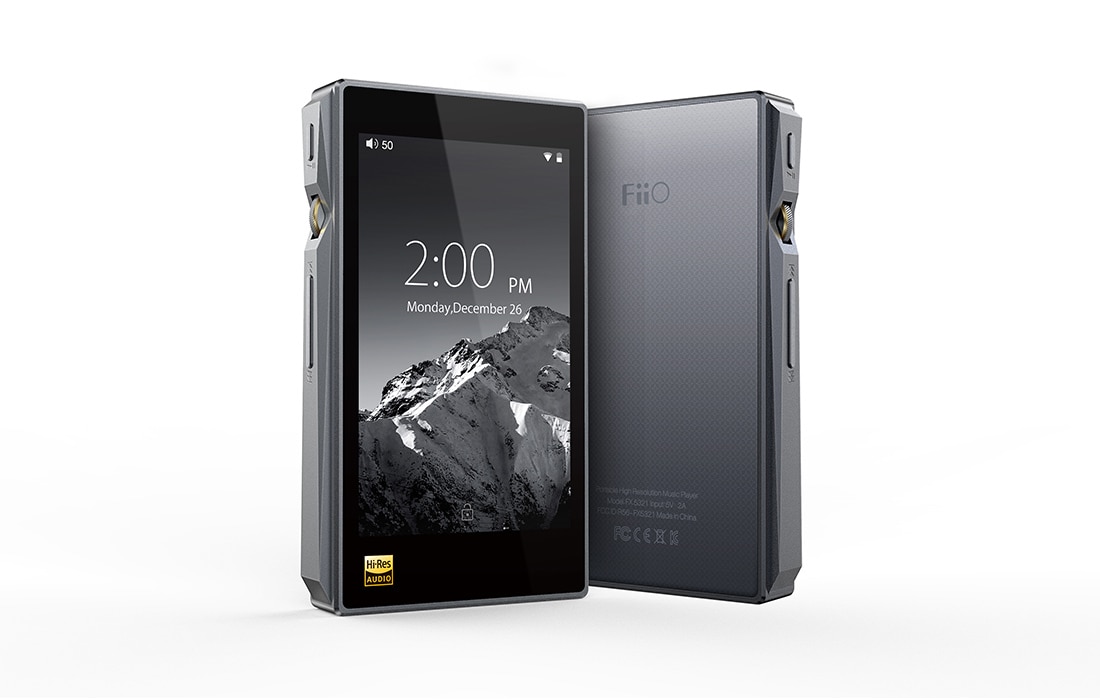

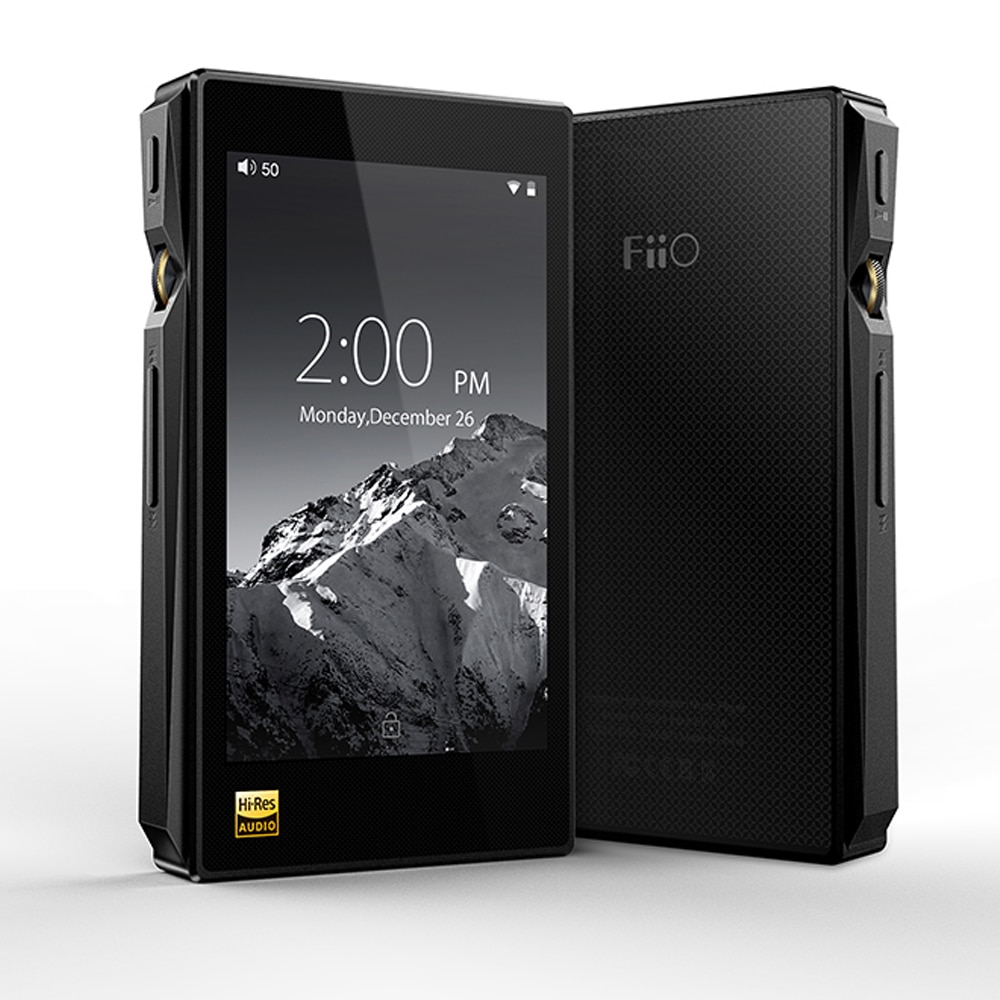

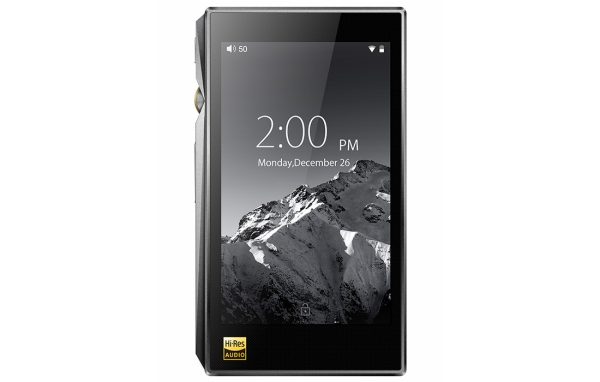

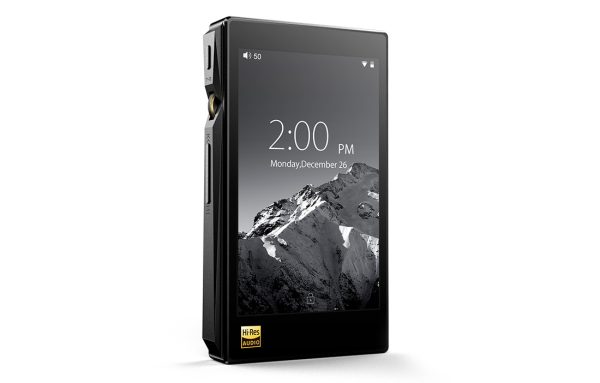

FiiO X5 3rd Gen Hi-Res Certified Lossless Music Player with Touch Screen Android OS – Black

★★★★★

Destined for 5 stars.

Price by Payment Method
Card Payments Best Deal	PKR 46,450
Bank transfer Best Deal	PKR 45,550
Cash on delivery Best Deal	PKR 46,550

[SHORTCODE_ELEMENTOR id=”664324″]

Out of stock

SKU: AMT-3074 Category: Hard Drives

Description

Main Unit
Name / Model No.	X5 3rd gen（FX5321）	Operating System	Deeply customized Android 5.1.1
CPU Model	RK3188	No. of cores	4
CPU operating frequency	1.4GHz	DAC	AK4490
Keyboard	Virtual QWERTY keyboard	Input method	Touchscreen
Special features	Dual Android / Pure Music operating modes, symmetrical remappable keys, USB DAC, docking connector, etc.	User Interface	Android 5.1.1 / FiiO Music
Chips used	SoC: RK3188， DAC: AK4490x2, LPF: OPA1642x2, OP: Customized OPA426x2
Connectivity
WIFI	2.4GHz IEEE802.11 b/g/n standards supported	Bluetooth	Bluetooth V4.0，aptX supported
USB	Micro USB2.0
Display screen
Display size	3.97 inches	Number of colours	16.7 million colors
Display type	IPS TFT	Viewable angle	178°
Resolution	480×800	Pixel density	233 ppi
Touchscreen	Yes
Storage
RAM	1GB	Total ROM	32GB
Storage expansion type	Micro SD	ROM available to user	About 26G
Maximum storage expansion	512GB (256GB x 2)
Buttons and ports
Buttons	Side buttons + side volume wheel+ touchscreen	Custom key mapping	N/A
Headphone out	3.5mm standard headphone output jack	Balanced output	Supported (2.5mm balanced headphone jack)
Line out	Standard 3.5mm port (shared LO/Coaxial out)	USB connection	Micro USB2.0 (charging / data transfer / docking function / USB DAC)
Digital Coaxial out	Standard 3.5mm port(shared LO/Coaxial out)
General
Color	Titanium/Black/Red	Dimensions	114.2 mm× 66.2 mm× 14.8 mm
Weight	186g	Volume control	120 steps +/- button control (via analog-domain controller
Recommended headphone impedance	16~150 Ω	Equalizer	10-band EQ (±6dB), 9 presets+custom preset, ViPER Effect
Bass boost	N/A	Treble boost	N/A
Balance control	10 dB	Gain control	Low/High
USB DAC	Up to 192kHz/24bit supported
Power specifications
USB power adapter	DC 12/1.5A, 9V/2A, 5V/2A recommended	Battery	Internal 3400 mAh High-voltage quick charging Li-polymer battery
Charging indication	via LCD display and pulse LED	Charging time	＜2 h (DC 12V/1.5A) ＜3 h (DC 5V/2A)
Battery indication	Yes (accurate battery % readings)
Battery Life & Test Conditions
3.5mm headphone output：>10 h
Volume	46	Gain	High
Load	M3 open earbuds (27 Ω)	Screen	OFF
Test File	MP3 44.1kHz/16bit	EQ	OFF
2.5mm TRRS balanced headphone output：≥8 h
Volume	48	Gain	High
Load	32Ω	Screen	OFF
Test File	MP3 44.1kHz/16bit	EQ	OFF
Battery life test file download link	click here to download
Others
Firmware Upgrade	supported both via zip file and OTA	Font size	Changeable
Third-party apps support	No limit (recommended to install the apps listed on FiiO Market)
Line output specifications
THD+N	＜0.0009% (1 kHz/10kΩ)	SNR	≥120 dB (A-weighted)
Frequency response	5 Hz~55 kHz（-3dB）	Dynamic range	>117 dB
Channel separation	＞98 dB (1 kHz)	Line level	＞1.8Vrms
Headphone out specifications (3.5mm headphone out jack)
Output power 1	≥480 mW（16Ω / THD+N＜1%)	Output impedance	＜1Ω (32Ω loaded)
Output power 2	≥250 mW（32Ω /THD+N＜1%)	Channel separation	＞73 dB (1 kHz)
Output power 3	≥28 mW（300Ω / THD+N＜1%)	THD+N	＜0.003% (1 kHz)
Frequency response	5 Hz~55 kHz（-3dB）	Peak output voltage	＞8 Vp-p
SNR	≥115 dB (A-weighted)	Max. output current	250mA (For reference)
Balanced headphone out specifications (2.5mm TRRS headphone out jack)
Output power 1	≥400 mW（16Ω / THD+N＜1%)	Output impedance	＜3Ω (32Ω loaded)
Output power 2	≥240 mW（32Ω /THD+N＜1%)	Channel separation	≥98 dB (1 kHz)
Output power 3	≥26 mW（300Ω / THD+N＜1%)	THD+N	＜0.003% (1 kHz)
Frequency response	5 Hz~55kHz（-3dB）	Peak output voltage	＞7.5 Vp-p
SNR	≥111 dB (A-weighted)	Max. output current	＞250 mA (For reference)
File format support
Lossless:	DSD：DSD64/128（”.iso”, “.dsf”, “.dff”） DXD：352.8K APE FAST/High/Normal：384kHz/24bit（MAX） APE Extra High：192kHz/24bit（MAX） APE Insane：48kHz/24bit（MAX） Apple Lossless：384kHz/24bit（MAX） AIFF：384kHz/24bit（MAX） FLAC：384kHz/24bit（MAX） WAV：384kHz/32bit（MAX） WMA LOSSLESS：96kHz/24bit（MAX）
Lossy compression:	MP3, AAC, WMA, OGG…
