Product description

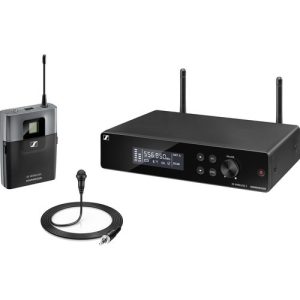

Make your presentations come to life! Compact bodypack system, with omnidirectional lavalier mic, offering excellent speech intelligibility. Transmitter features an illuminated mute button, 10 hours of operation, and 960 tunable frequencies. Unobtrusive ME2-2 lapel mic provides natural speech reproduction. All-metal, True Diversity receiver offers intuitive scan and sync functions that ensure trouble-free operation. Rugged, reliable and easy-to-use, XS Wireless delivers renowned Sennheiser sound to small venues, conference rooms or houses of worship.

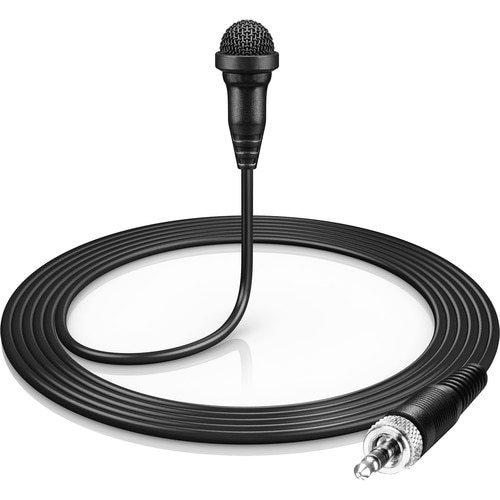

ME 2-2 Clip-on Mic Specs:
Microphone type: pre-polarised condenser
Input sensitivity: 5 mV/Pa
Pick-up pattern: omni
Max. SPL: 142 dB

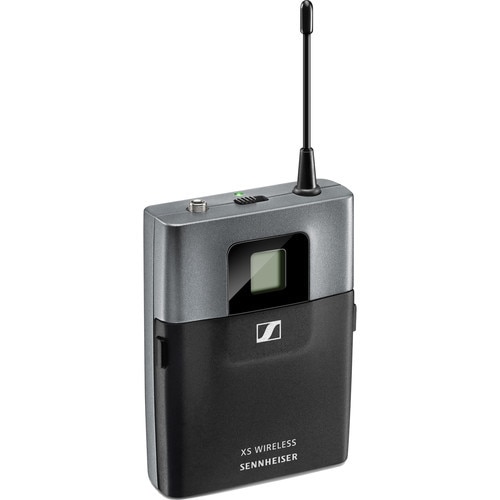

SK 20 Bodypack Transmitter Specs:
RF output power: 10mW
AF frequency response: 60Hz – 16kHz, Line input | 100Hz – 16kHz, Mic input
AF input: 3.5 mm jack
Nom. Input voltage (Mic/Line): 0.5 Vrms/1.8 Vrms (Mic/Line) at -30dB gain
Power supply: 2 AA batteries, 1.5V
Operating time: up to 10 hours
Dimensions: 2-5/8″ — 3-3/4″ — 15/16″
Weight: 0.21 lb.

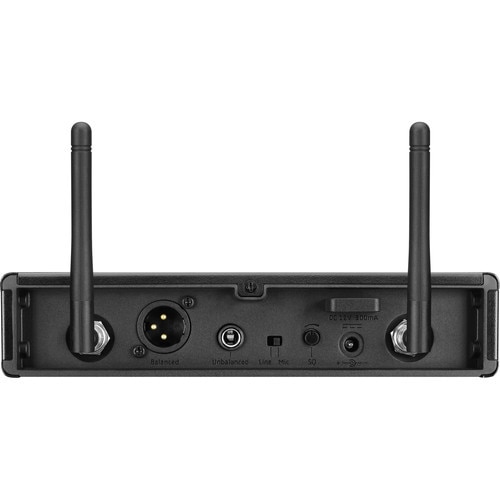

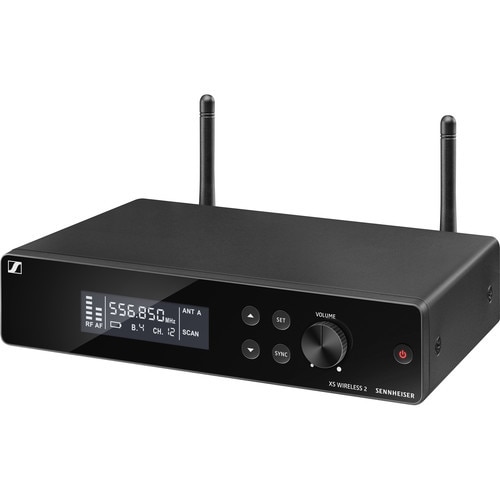

EM10 Receiver Specs:
Receiver principle: True Diversity
Sensitivity (at peak deviation): < 3?V at 52dBa rms S/N
Adjacent channel rejection: ? 60dB
Intermodulation rejection: ? 50dB
Blocking: ? 65dB
AF frequency response: 60-16,000Hz
Pilot tone: 32.768kHz
Antenna input: 2 BNC connectors, 50-ohms
AF output voltage (at peak dev., 1 kHz AF): 1?4” (6.3 mm) jack socket (unbalanced): +8 dBu; XLR socket (balanced): +14 dBu
Power supply: 12 VDC nom./300 mA
Dimensions: 7-7/8″ — 1-5/8″ — 5″
Weight: 1.6 lb.
Package Includes:
ME 2-2 clip-on mic, SK 20 bodypack transmitter, EM 10 true diversity receiver, NT 2-3 power supply, 2 rod antennas, 2 AA batteries, Pouch, Instruction manual
